Single Ring Roller Coaster - Heart-Pounding Thrills on Circular Track | LMQ | Limeiqi
Roller coaster is a very exciting amusement which is popular for young. It is a new coaster ride that slides along special aerial railway. Its railway is powered by two groups of motility and supports coaster sliding by frictional drive. Undulant degree and speed of this ride is especially comfortable for children aged at twelve and elder.
Product Display
Product parameters
| Parameter | Standard Specification | Customizable Option |
|---|---|---|
| Track Length | 400–800m | Custom length per site layout |
| Loop Height | 20–35m | Adjustable to match site profile |
| Capacity | 16–24 riders / train | — |
| Train Cars | 4–6 cars, 4 persons/car | Custom car count |
| Ride Duration | 2–3 minutes | Track length dependent |
| Max G-Force | Up to 4G at loop bottom | Tuned for target audience |
| Power Supply | 380V / 50Hz (3-phase) | 220V / 480V optional |
| Installed Power | Project-specific | Calculated at design stage |
| Drive System | Chain lift + caterpillar drive | Hydraulic / linear motor optional |
| Control System | Siemens PLC (SIMATIC S7) | ABB / Rockwell Allen-Bradley |
| Structure Material | Hot-dip galvanized steel, anti-corrosion | Stainless steel optional |
| Track Rail | High-strength steel, precision-welded | — |
| Safety Braking | Magnetic eddy-current + mechanical backup | Dual-redundant standard |
| Train Material | FRP body + steel chassis | Custom themed body |
| Safety Restraints | Over-shoulder harness + lap bar | Custom restraint system |
| LED Lighting | Optional integrated LED package | RGB sync lighting available |
| Certifications | CE, ISO9001, BV, TÜV, SASO | ASTM F2291 on request |
| Warranty | 12 months standard | Extended warranty available |
| Lead Time | 2–4 months after order confirmation | Rush production available |
| Container Fit | Multiple 40HQ containers | Optimized at design stage |
Safety Systems
| Safety System | Technical Details |
|---|---|
| Dual Brake System | Primary: Magnetic eddy-current brake for smooth, maintenance-free deceleration. Backup: Mechanical fail-safe brake engages instantly on power loss. Dual-redundant design, zero incidents in 38 years. |
| Anti-Derailment Track Locks | Multi-point wheel engagement design — wheels locked above and below rail at all times. Exceeds EN 13814 anti-derailment requirements. Tested to 100,000+ load cycles. |
| Emergency Stop System | One-touch emergency stop at every operator station and passenger loading area. Full ride stop in < 0.5 seconds. Automatic stop on: door open, foreign object detection, wind speed exceedance. |
| Speed Governor | Continuous electronic speed monitoring. Automatically enforces speed limits at all track sections. Exceeding thresholds triggers immediate controlled stop. |
| Fire Prevention | FRP body is self-extinguishing (UL94 V-0 rated). All electrical components rated IP54 or higher. Lightning protection system standard on all installations. |
| Structural Fatigue Testing | Full-scale structural fatigue test completed before first production run. Exceeds EN 13814 requirements. Ultrasonic weld inspection on every joint before shipment. |
| Passenger Restraints | Over-shoulder harness with automatic locking mechanism. Secondary lap bar for additional safety. Lock status monitored by PLC — train cannot launch until all restraints confirmed locked. |
| Real-Time Diagnostics | PLC-based control system with live fault code display. Remote monitoring available via 4G/ethernet. Daily inspection checklist displayed on operator panel. < 48 hours annual downtime target. |
Key selling points
| Feature | Description & Benefit |
|---|---|
| 360° Vertical Loop | The signature element creates 3–5 seconds of pure weightlessness — the exact duration research shows maximizes thrill without causing discomfort. Riders experience up to 4G at the bottom of the loop. This is the photo moment that becomes your park's social currency. |

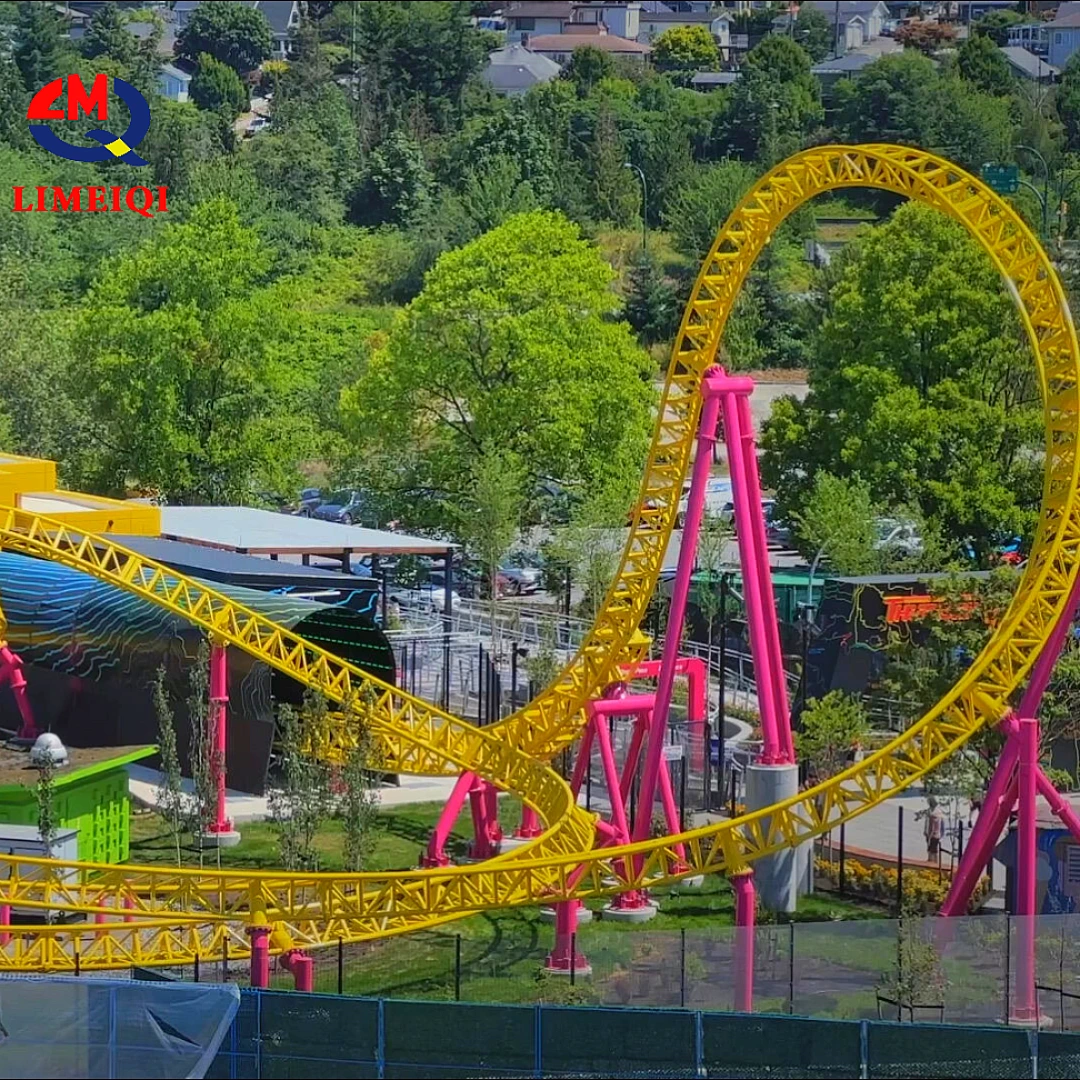

| Fully Customizable Colors | Track and support colors are fully customizable. The yellow/pink combination shown is one of 200+ color schemes produced. Match your park's existing palette or create a bold signature contrast that stands out in aerial photography. |
| Theme & Branding Integration | Custom FRP train body mold design, branded color schemes, and logo placement. From jungle adventure to sci-fi odyssey — your coaster tells your park's story from the moment guests see the lift hill. |
| Dual Safety Braking | Magnetic eddy-current brakes provide smooth, maintenance-free deceleration. Mechanical backup brakes engage automatically on power loss. This dual-redundant system has maintained a zero-incident record across 38 years and 500+ installations. |
| LED Nighttime Package | Optional integrated LED lighting transforms the coaster into a nighttime landmark. Colors synchronize with ride events — launches, inversions, and station arrivals. Extends operational hours and drives evening foot traffic without additional staffing cost. |
| High-Capacity Throughput | Multi-train configuration (dual or triple trains) reduces queue time between cycles. High-capacity loading platform design. Typical throughput: 400–720 riders/hour depending on configuration and cycle time. |
| All-Weather Durability | Galvanized steel structure with multi-layer anti-corrosion treatment. Electrical systems rated IP54+. Operating range: -20°C to 50°C. Successfully installed in deserts, tropical climates, and alpine environments. |
| Siemens PLC Control System | Industry-standard Siemens SIMATIC S7 PLC with real-time diagnostics. Remote monitoring and firmware updates available. Intuitive operator interface with daily inspection checklists and fault history logging. |
Our Services
From Quote to Grand Opening
Six steps. One dedicated team. From initial consultation to lifelong support.
We learn about your park, target audience, site dimensions, and project goals. This 30-minute call shapes the entire custom design proposal — we ask the right questions so you get the right coaster.
Our engineering team creates a 3D site layout optimized for your available space. You receive a walkthrough video and technical drawings before any production begins. Track colors, train design, and lighting all confirmed at this stage.
Production in our 60,000㎡ facility with live photo/video progress updates. Every weld ultrasonic-tested. Every assembly inspected before painting. Full quality documentation compiled for your market's certification authority.
We handle all export documentation, customs clearance coordination, and freight forwarding. FOB / CIF / DDP options available. Container loading supervised by our QC team. You receive tracking updates at every milestone.
Our engineers supervise on-site installation. Comprehensive operator training covers daily inspection, ride operation, emergency procedures, and basic maintenance. 2-day training program included as standard.
24/7 technical hotline connects you directly to engineers. Spare parts stocked at 5 overseas offices for 48-hour global delivery. Annual on-site inspection service available. Remote diagnostics via PLC connection when available.
